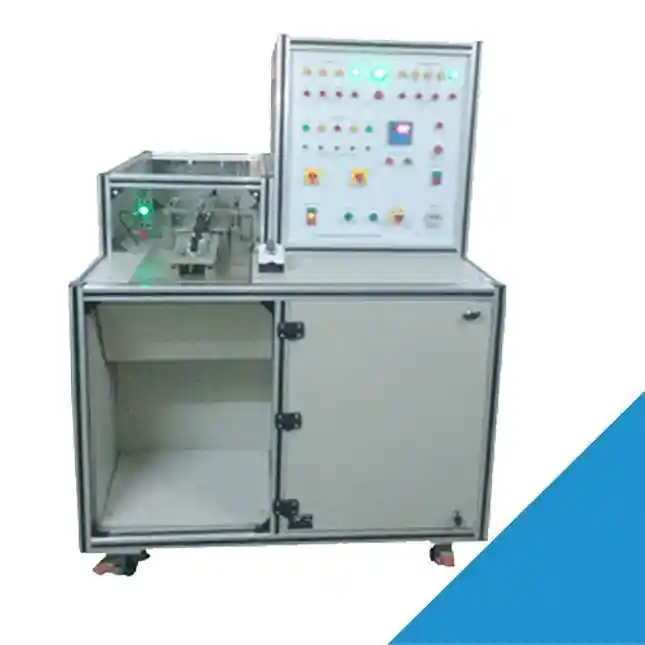

The SCR Elektroniks Switch Di-Electric Test Bench is designed to verify the high voltage testing of household and rocker switches (SPST and SPDT) as per IEC 60669, IS 3854 and BS EN 60669. The system employs Siemens PLC to carry out the test sequence and test parameter (timing) setting. The di-electric strength test is referred to as Clause 16.2 in the following standards:IEC 60669 BS-EN 60669 IS 3854.The above test can be customized with respect to the test voltage (kV), leakage current measurement (mA), test time, etc. In addition, the test sequence with respect to the terminals of Single pole Single throw switch as well as Single pole Double throw switch on to which dielectric voltage is applied can be pre-programmed.
In addition, there is a continuity test module which helps in checking the conformance of the switch in closed condition to ensure complete reliability of the switch w r t operation and safety before being shipped out for sale.
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Produk Tridinamika tersertifikasi jaminan SNI
Ini hanya demo
Free
Jasa Pengiriman kilat oleh tim Tridinamika
Ini hanya demo saja
2-3 Days
Free
Specification:
* Stand-alone unit after initial configuration of test parameters: The operator just pushes a push button for initiation of the test sequence
* User friendly Front control panel for easy setting of parameters
* Siemens PLC for completely automated operation
* User selectable threshold mA leakage current
* Diagnostic mode for periodical debugging and diagnostic check of machine / controls and fixture
* Mounted on castor wheel
* Specially designed fixture for safe operation with operator safety in view
* Input voltage: 230 V
* 50 / 60 Hz operation as per incoming line frequency
* Test voltage: 200 V – 1500 V
* Threshold Leakage current setting: 2, 5, 10, 20, 50 mA
* Pneumatic Pressure: approximately 6 bar
* Class 1 Accuracy for measurement of current and voltage
| Brand |
SCR Elektroniks |
|---|
