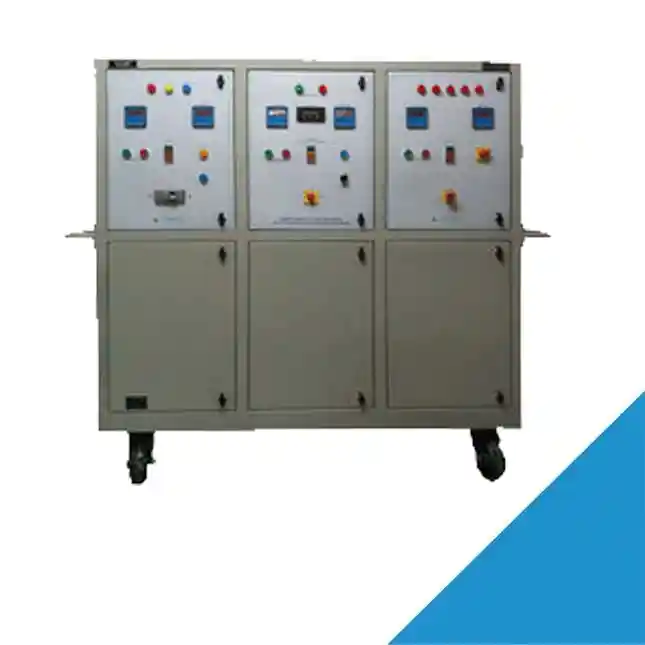

SCR ELEKTRONIKS have developed primary and secondary Current injection test trolley for Switchgear manufacturers for testing of ACB , MCB , MCCB. It is low Voltage high Current source with control circuitry, digital read out for test current and trip time measurement. We can select different links of CT range as per the required test Current.
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Produk Tridinamika tersertifikasi jaminan SNI
Ini hanya demo
Free
Jasa Pengiriman kilat oleh tim Tridinamika
Ini hanya demo saja
2-3 Days
Free
Specification :
* User defined continuous and short time duty cycle
* Single / 3 phase operation possible
* Test time indicator and controller
* Portable (with lockable castor wheels) allows movement accross factory floors
* Combined AC / DC operation possible as per customer specs
* Can integrate temperature rise and measurement system
* PC based operation possible as per customer specifications
* Input supply: 415V two phase with MCB protection.
* Digital Voltmeter: 3-½ digit (0 – 500 V AC).
* Digital Ammeter : 3-½ digit ( 0 – 100% )
* Variac for Current adjustment .
* Test time indicator with four ranges .
* Five CT ranges for selecting the test Current.
* Indicator lamps : Power ON , Output ON , Overload.
| Brand |
SCR Elektroniks |
|---|
