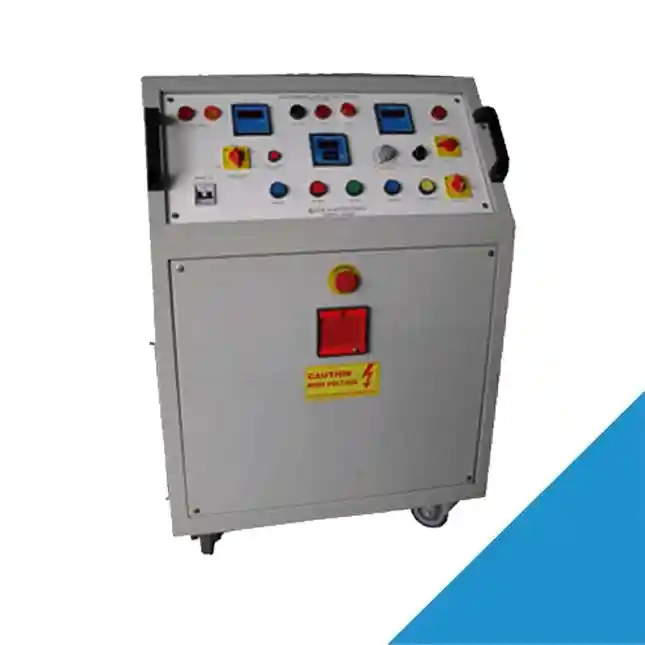

The high Voltage also known as di-electric withstand tester comes with customized facilities like voltage rampup rate zero interlock, Plus the user may specify the voltage level and leakage milliampere level so as to suit its testing needs.
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Produk Tridinamika tersertifikasi jaminan SNI
Ini hanya demo
Free
Jasa Pengiriman kilat oleh tim Tridinamika
Ini hanya demo saja
2-3 Days
Free
Specification :
* Voltage Range: 0 to 10kV
* Tripping Current: 5mA/15mA/25mA/50mA/100mA
* Least count 0.01kV
* Duty cycle: 50% and 5min duration.
* Input Supply: 230VAC, 1-phase, 50Hz.
* Digital mili-ammeter will have press to read push button.
* Digital Timer: Time setting can be adjustable up to 60 Sec. Timer will start counting when required voltage will be reached.
* Alarm: Visual as well as audible indication for High Voltage ON.
* H.V. Transformer heavy-duty epoxy cast.
* Indications : High Voltage and leakage current on separate meters.
* Output ON
a) HV Probe for HV Output
b) Crocodile Clip for Earth output.
* Lamp Indications : ‘HT ON’, ‘OK’ ‘NOT OK’
* Provision for push button for H.V. ON and Emergency OFF.
* Panel will be well finished and powder coated with shade RAL 7035 (gray) built in extruded aluminum for better aesthetics.(Table Top Model)
| Brand |
SCR Elektroniks |
|---|
