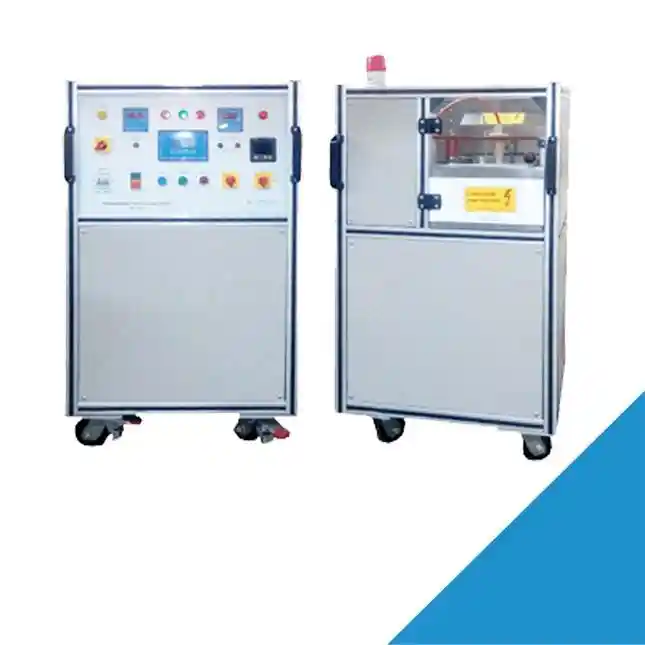

SCR Elektroniks Programmable High Voltage Tester 50KV 50mA AC
Programmable High Voltage Tester(PHVT – 50KV/50mA AC) The high Voltage also known as di-electric withstand tester comes with customized facilities like voltage rampup rate zero interlock, Plus the user may specify the voltage level and leakage milliampere level so as to suit its testing needs.
19
People watching this product now!
Product Details
Specification
Specification :
* Input- 230 VAC, 32Amps, Single Phase, 50Hz
* Digital Voltmeter – 3 ½ digit having range 0 to 50.00 KV AC
* Digital Current Meter –3 ½ digit having range 0 to 50 mA AC
* Time setting – 0 to 99 seconds
* Temperature Controller (DTC204) – 0 to 200˚C
* Tripping threshold – 3 mA, 5 mA, 10 mA, 25 mA, and 50 mA
* Indicator Lamps – HT ON, PASS , FAIL
Additional information
| Brand |
SCR Elektroniks |
|---|
User Manual
