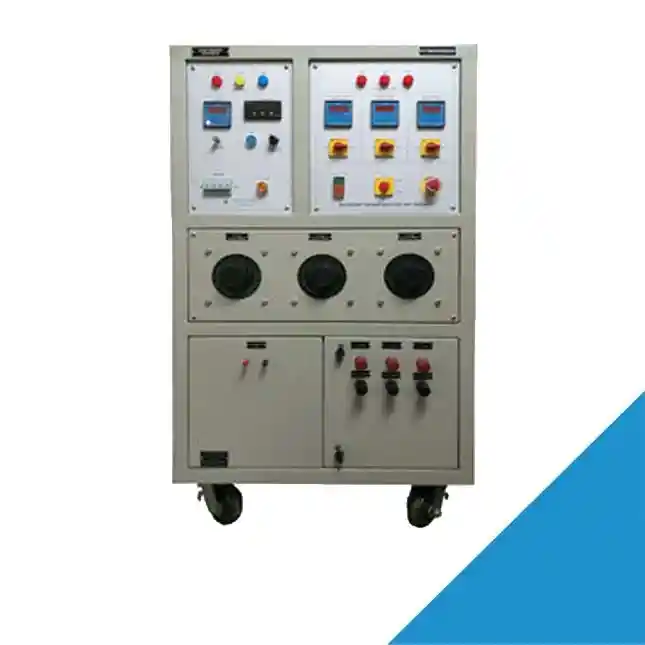

SCR ELEKTRONIKS have developed SECONDARY CURRENT INJECTION TEST TROLLEY for Switchgear items, CT manufacturer and where three phase current application is called for. It is low Voltage, 3 phase Current source with control circuitry, digital read out for test current and trip time measurement. We can select different CT ranges for each phase independently and adjust the current as per the required test Current.
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Produk Tridinamika tersertifikasi jaminan SNI
Ini hanya demo
Free
Jasa Pengiriman kilat oleh tim Tridinamika
Ini hanya demo saja
2-3 Days
Free
Specification :
* Fully customized design
* In built current and voltage meter for accurate measurement and display of current and voltage
* Can be servo controlled for accurate voltage output
* AC / DC output
* Single, two phase and three phase operation possible – can be customized
* Input supply: 415 V three phase with MCB protection.
* Output: Switches selectable for each phase.
* Digital Ammeter: 3-1/2 digit (0 – 1.000 Count) one for each phase.
* Output ranges:
15V/1A, 5V/5A, 2V/10A
20V/1A , 10V/5A , 5V /10A
40V /1A ,15V/5A,10V/10A
* Variac for Current adjustment is provided one for each phase.
* Test time indicator with four ranges. (0-99.999 sec, 999.99sec, 9999.9sec,99999sec)
* CT ranges for selecting the test Current. They are 1A, 5A and 10A.
* Power ON indicator lamp
* Protection: MCB for Input supply.
| Brand |
SCR Elektroniks |
|---|
