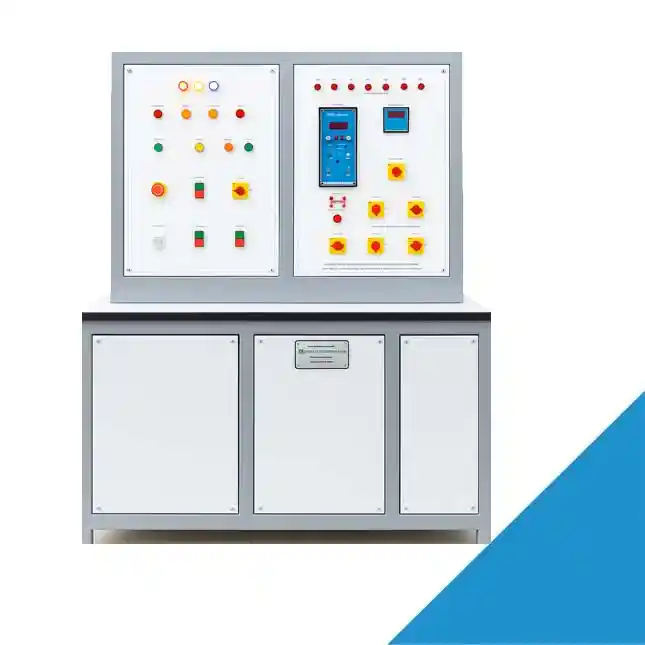

SCR ELEKTRONIKS have developed “PC BASED TEMPERATURE RISE TEST BENCH 25kA” to measure rise in temperature at various points as mentioned in standard at junctions. The set-up consists of a True RMS Constant Current Source (to maintain the Current within + / – 1 % of set value with Digital Indication), PC based control system, Temperature data logging on PC, Servo-Controller and other indications. Digital voltmeter Primary Voltage indicates the position of auto transformer (variac).
Servo controlled mechanism is used to maintain constant current throughout the test in manual mode. CR/AL(‘K’ type) type thermocouples are used for temperature sensing.
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Produk Tridinamika tersertifikasi jaminan SNI
Ini hanya demo
Free
Jasa Pengiriman kilat oleh tim Tridinamika
Ini hanya demo saja
2-3 Days
Free
Specification :
* Input Supply 415V AC 200A for two phases & 16A for Third phase.
* Output – Single Phase 8V adjustable in steps with 3 Power Transformer and contactors.
* Output Current – 100A to 10kA @ 8V and 25kA Short time
* Constant current with the help of Servo Control – True RMS Sensing Servo Controller will be used to keep the current within +/- 1% of set value.
* Current Measurement – Wound type bar primary CT with 200A, 500A, 1kA, 2kA, 5kA, 10kA, 20kA & 25A. Taps will be provided to measure & control the current accurately. The selection of CT range will be with Rotary Selector Switch and contactors.
* Indication :
a) Digital Voltmeter : For variac position 0 to 500V AC Accuracy Class 1.
b) Digital Servo Controller : For test current which reads the value in terms of CT Range. 0 to 1.000 count of CT Range Accuracy Class 1.
c) CT for current measurement with Accuracy Class 0.5, Burden 5VA.
d) Shunt : 0.1 Ohms/50W for measurement of current on C.R.O.
* Test ON/OFF, Reset, Emergency OFF Push Buttons. Protection : Over Current trip with 10sec. Delay. Mains ON/OFF with MCCB.
* Panel will built in M.S. Fabricated trolley with powder coating of minimum 80 micron thickness. Suitable Nylon wheels will be provided for easy movement of trolley.
* Digital Timer to Set ON time 0 to 99 Hours with alarm after end of test time
* All the controls will be through PC. In PC mode & with switches in manual mode.
