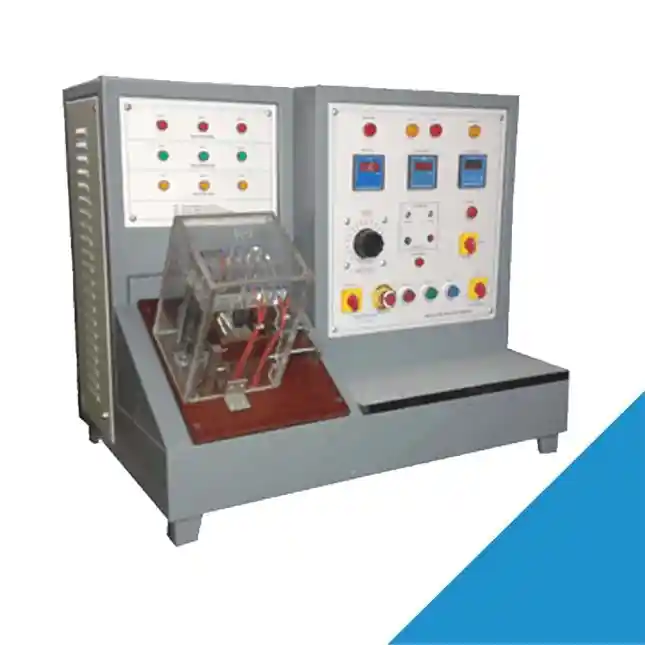

SCR Elektroniks Test Set Up of High Voltage Test For RCCB
This HV Tester is unique in the fact that it is provided with an indigenously designed fixture to RCCB with the facility to test the di electric strength between:
Test 1:- HV apply across terminals
Test 2:- HV apply between terminals of adjacent poles.
Test 3: HV apply between terminals of all poles and enclosures.
Product Details
Specification :
* Safety Features:
a) Zero Interlock
b) Epoxy cast Transformer
* Zero Interlock bypass facility, timer bypass facility.
* Input Supply : 230 V AC, +/- 10 %, 50 Hz.
* Test Voltage : 0 – 3 KV AC.
* Tripping : 200 mA.
* Time Setting : 0 – 60 Sec.
* Safety Features : Fixture Cover Interlock Epoxy cast Transformer
* Lamp Indication : HT ON, OK, NOT OK (fault), Test Over,Test 1, Test 2, * * Test 3, Low Voltage, Low Current
* Fuse : 3 A AND 5 A current ratings.
| Brand |
SCR Elektroniks |
|---|
