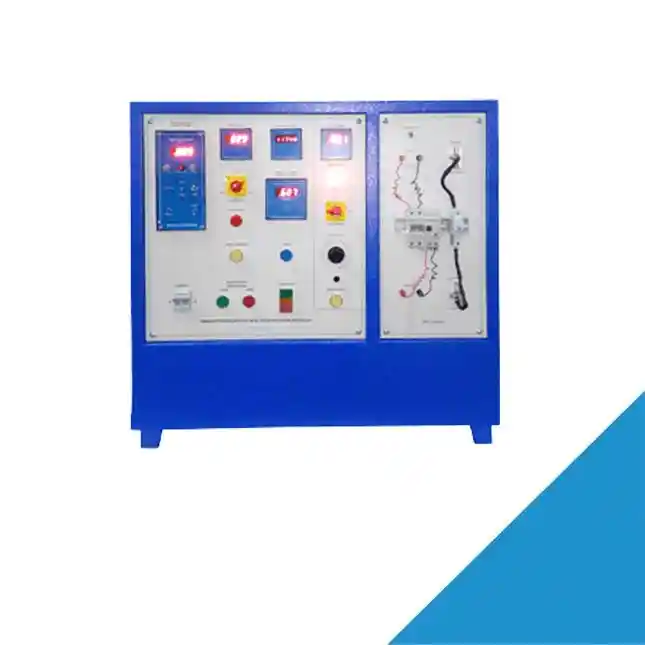

Testing Set-up for Testing & Demonstration of Different Tests for MCB, ELCB, Thermal Overload Relays
SCR ELEKTRONIKShave designed MCB TEST BENCH i.e Miniature Circuit Breaker Test Bench to provide MCB manufacturers and users a simple steady method of Testing their MCBs, ELCB, Thermal Overload Relays for thermal overload test & Magnetic Trip test for MCBs.
It provides a Constant Current Source. The range and the test current can be set depending upon the range of the MCB. The Tripping time is indicated on Digital Time Interval Meter which stores the information till we reset the system.
Provision is also made in this panel to carry out demonstration of Instanteneous Operation of Short Circuit Protection.
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Produk Tridinamika tersertifikasi jaminan SNI
Ini hanya demo
Free
Jasa Pengiriman kilat oleh tim Tridinamika
Ini hanya demo saja
2-3 Days
Free
Specification :
* Input Voltage : 230 V AC
* Output Current : Selectable with selecting the links
* VOLTAGE SELECTION : (For Single Station)
1A-10A / 25V,
10A-100A/ 4V,
50 A-400A/4V
* C.T. RANGE : 10A, 20A, 200A, 400A
* Current Regulation : +/- 0.5% of Setting
* Current Meter : Digital Meter with 3 1/2 Digit Display Indicating TrueRMS Value. (Provided On Servo Controller Unit)
* Transient Recording Meter : 0 to 1A track and Hold Digital Current Indicator
* Time Measurement : 4 Digit Display with 4 Ranges viz.-
a) 0 – 9.999 Sec.
b) 0 – 99.99 Sec.
c) 0 – 999.9 Sec.
d) 0 – 9999 Sec.
| Brand |
SCR Elektroniks |
|---|
