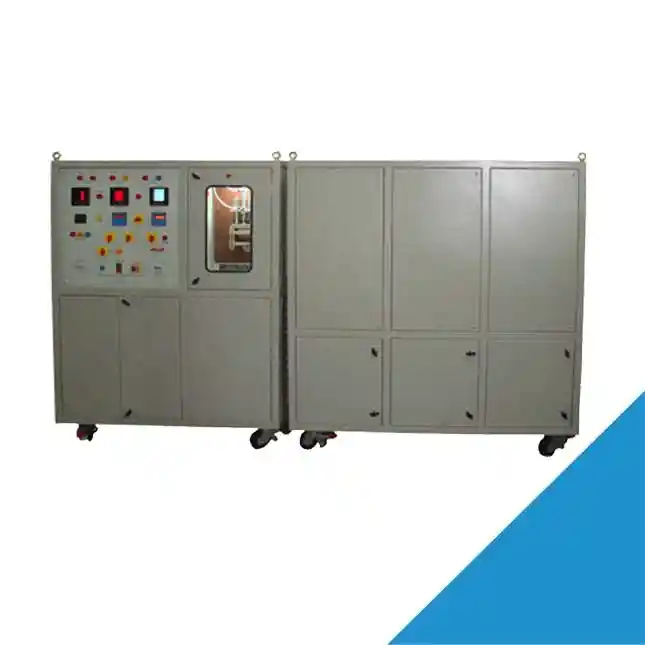

SCR Elektroniks Three Phase RCCB and RCBO Endurance Test Bench

Specification:
* Completely stand alone unit after initial configuration of test parameters.
* Smartly designed pneumatic fixture to accommodate more type of MCBs.
* Safety / Diagnostic Feature: Contact Weld / Contact Open indication for opening or welding of current carrying contacts inside the panel.
* Micro controller based operation enables input settings as per IEC as well as user configurable for other settings.
* Graded inductors for accurate power factor output Industrial grade wire wound resistors enables continuous operation without overheating of the load bank.
* MCB Range Selection: Through neatly labelled shorting links.
* User friendly digital interface to input test parameters.
* The user may simultaneously test RCCBs of different brands and compare the test results (Ideal Application for Test Labs and Certification Agencies).
* Micro Controller Based Programmable timer to set ON / OFF Time 0 – 99.9sec.
* 3 Phase Digital Voltmeter.
* 3 Phase Digital Ammeter.
* 3 Phase Digital Power Factor Meter.
* Electro Magnetic Counter: It will count the number of operation.
* Current Sensing Circuit: To detect contact weld & contact open..
* This will give a signal to cut off the Load, if fault persists for predefined time.
* RCCB Testing Resistive Load with 30mA, 100mA and 300mA will be provided. Following Tests will be performed for RCCB i.e.
* Endurance Test at rated voltage.
* Endurance Test with residual current.
* Push Button Test.
* The above tests will be selected with Rotary Selector Switch.
