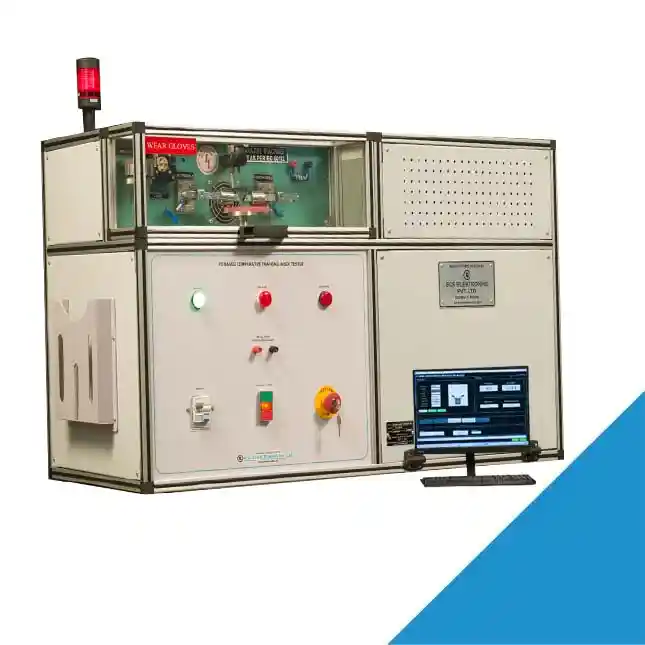

Tracking Index Test Machine from SCR ELEKTRONIKS is a popular product for checking compliance of solid insulating material as per IEC 60112, UL 746A, ASTM D3638 and DIN 53480. With a high voltage applied between two platinum electrodes, the solid insulating part is placed such that there is a 4mm gap between the electrodes touching the insulating material under test. The high voltage is settable up to 600V or 1200V depending on model. Drops of contaminant are poured on to the electrodes while voltage is applied. With time, it’s evaluated on the criteria outlined in IEC 60112 or the equivalent national standard with which the insulating material is required to comply with.
The tracking index test provides an accelerated simulation of conditions of surface discharges and possible resulting tracking and failure in equipment using insulating materials. This test also provides a means to compare insulating materials performances under wet and contaminated conditions.
This test apparatus is covered in IEC 60112 and commonly referred for various devices in many standards such as IEC 60335 – 1, IEC 61058 – 1 , IEC 60065, IEC 60669 – 1, IEC 60884 – 1, IEC 60950 – 1, IEC 61010 – 1 , IEC 60598 – 1,IEC 60320 – 1 IEC 60898 – 1, IEC 60400, IEC 60238, IEC 60730 – 1, UL746A , ASTM D3638 and DIN53480.
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Produk Tridinamika tersertifikasi jaminan SNI
Ini hanya demo
Free
Jasa Pengiriman kilat oleh tim Tridinamika
Ini hanya demo saja
2-3 Days
Free
Specification :
* Built in electrolyte container with pump, producing drops of 20 + 3mm³ volume at precise interval of 30 seconds. The drop falling height is adjustable to 35 mm.
* Electrode Voltage Setting – 0 to 230V, 0 to 450V, 0 to 650V, 0 to 850V, 0 to 1070V, 0 to 1280V adjustable.
* Extensively tested for safety with multiple fail-safe safety features.
* Siemens make Logo PLC unit to set and control the test sequence.
* Digital Meters to read test voltage and current.
* Current limiting resistances automatically selected with test voltage.
* Electrode Material: Platinum.
* Exhaust fan for removal of fumes.
* Clear acrylic front cover for safety and creating a draught free surrounding.
* Cover open interlock switch for additional safety.
* Priming facility for the pump to enable removal of initial electrolyte having higher concentration.
* Fully automatic unit with minimum of user controls/adjustments.
* Used by many leading manufacturers & Test-labs including IDEMI , ERDA , SAMEER, NTH, TUV and DVGW research center etc.
* Supply Voltage: 230 V AC ,50 Hz
* Test Voltage –100 to 600 VAC, adjustable (Option = 1200V AC)
* Short circuit release – 0.5 A for 2 Sec; Short circuit current limited to 1A
* Preset load on the electrodes, exerting a force of 1.0N each
* Tripping Current preset at 0.5 Amps. With 2 sec lag, and short circuit Current limit setting at 1 Amps
* Adjustable Drop Volume: 20 mm3 (+3)
* Drop fall height: =< 40 mm
* Drop interval: 1 To 99 Sec (preset at 30 sec)
* Drop Number indication - Preset digital counter 0 to 99 drops.
