Accuracy ± 0 015% of mV Setting + 0 009mV
Calibrate in temperature for your TC type
Adjustable temperature output in selectable 0 1°C or 0 1°F steps
Select from Types J K E T R S B N G C D L U and P
Typical accuracy of ±0 35°C 0 5° for Type K
EZ Dial™ knob easily adjust output by °C or °F with 0 1° resolution
Three position EZ Check™ switch for 0% and 100% span adjustments
Uses standard “AA” Alkaline Batteries
Superior battery life of 45 hours under typical continuous usage
Easy access to battery compartment
Lightweight and Rugged with a Solid Feel
Small and tough
Protected to 60V
Optional Rubber Boot TC Wire with miniature connector and Carrying case available
NIST Traceable Calibration Certificate included FREE
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Produk Tridinamika tersertifikasi jaminan SNI
Ini hanya demo
Free
Jasa Pengiriman kilat oleh tim Tridinamika
Ini hanya demo saja
2-3 Days
Free

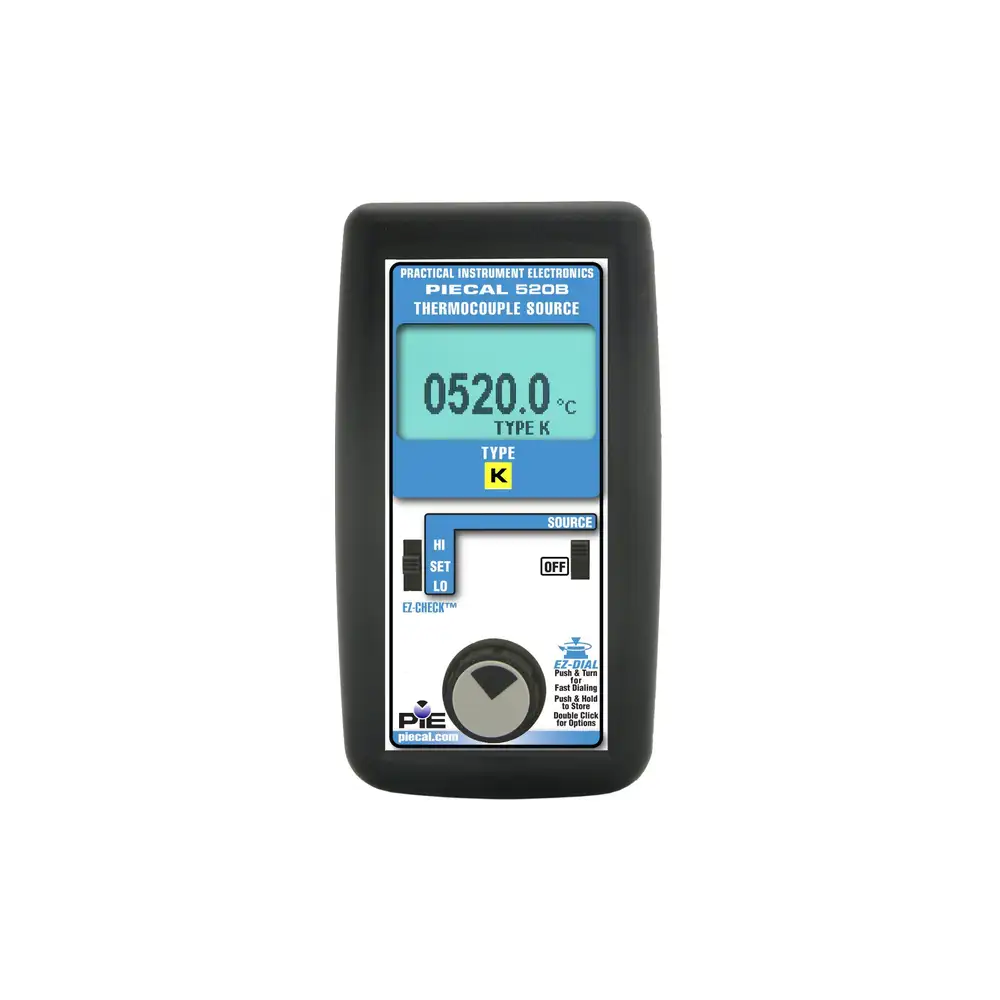

The PIE 520B Thermocouple Simulator simulates a dedicated standard thermocouple curve over the entire industrial temperature range The PIE 520B provides precise temperatures for inputs to all types of instruments such as transmitters recorders controllers alarms data acquisition and computer systems PIE 520B is cold junction compensated for changes in ambient temperature The PIE 520B offers the highest performance and functions in its class by exceeding the accuracy and functions of many higher priced thermocouple calibrators
The low cost PIE Model 520B is an “easy as PIE” to use thermocouple source for checkout and calibration of all thermocouple instruments in the field shop or control room
| Brand |
PIE |
|---|
