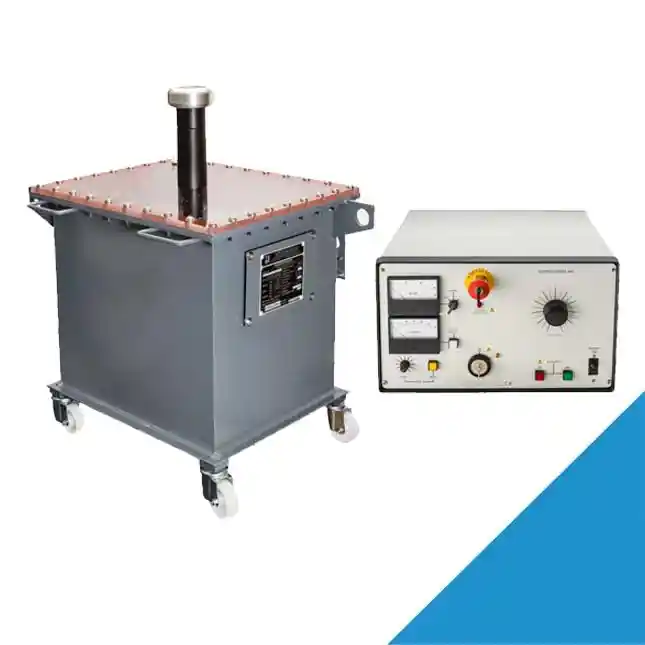

The KV30 100 MK3 Test System serves as a robust high power high voltage AC test system specifically designed for insulation testing It excels in both development and routine testing of electrical insulation systems and plant This comprehensive system comprises a control unit and a separate oil filled high voltage transformer connected by 5 meter supply and control cables
The control unit is equipped with an extensive range of features for control metering and protection Large linear analogue instruments display the output voltage and current accurately ensuring easy readability It includes a variable electronic trip that enables precise adjustment of the trip current within the 10% to 110% range of the rated output
The high voltage transformer housed in an oil filled steel tank with swivel castors for mobility plays a crucial role in the system It utilizes a high voltage bushing for the HV output while the other end of the HV winding remains earthed The system incorporates variable electronic trips that monitor the output current to protect against potential issues along with a fixed over current trip on the primary side of the output transformer The variable trip allows for adjustment in 10% increments between 10% and 110% of the rated output current Fuses provide protection for the input and control supplies
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Produk Tridinamika tersertifikasi jaminan SNI
Ini hanya demo
Free
Jasa Pengiriman kilat oleh tim Tridinamika
Ini hanya demo saja
2-3 Days
Free
0 30kV output voltage
3kVA output capability
Key operated supply switch to prevent unauthorised operation
Dual overload protection
Variable electronic trip – 10 110% of rated output
Voltage and current metering
External interlock circuit
Zero volt interlock
Visual indication of test piece failure
| Brand |
T & R |
|---|
