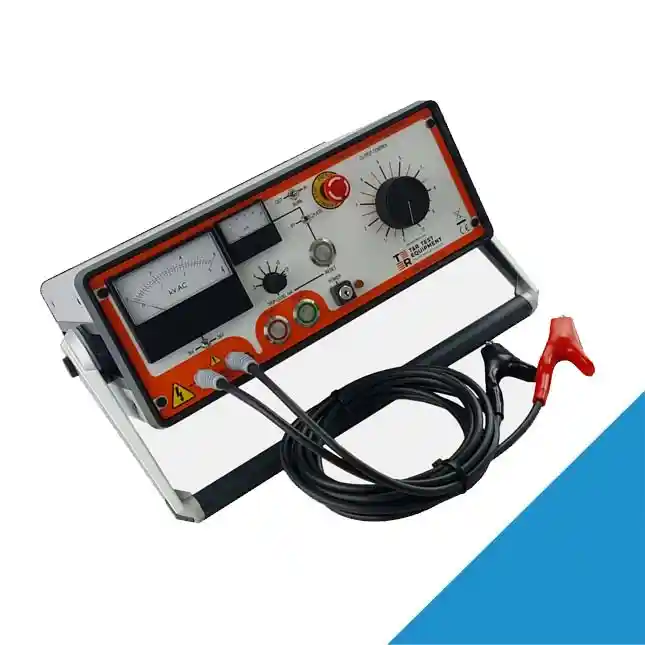

T & R KV5 100 MK3 Test Set

The KV5 100 MK3 Test Set is designed to test insulation systems and measures breakdown voltage on electrical components It adjusts output voltage from zero to 5kV and accurately meters output voltage and current An interlock energizes the output only when voltage control is zero

Two analogue instruments meter output voltage and load current Output voltage displays on a dual scale marking of 0 3kV and 0 6kV Load current has a 0 10 scale marking with selectable ranges 0 10mA and 0 100mA

An adjustable current trip linked to the current metering range safeguards the test object and output The trip level is customizable from 20 120% in 20% increments Audible and visible indications signal test object breakdown The alarm requires manual reset before resuming testing

The portable KV5 100 MK3 AC Test Set includes permanently connected test leads terminated in crocodile clips For enhanced safety use it with an interlocked test enclosure It’s an essential tool for precise and reliable testing in the electrical industry
