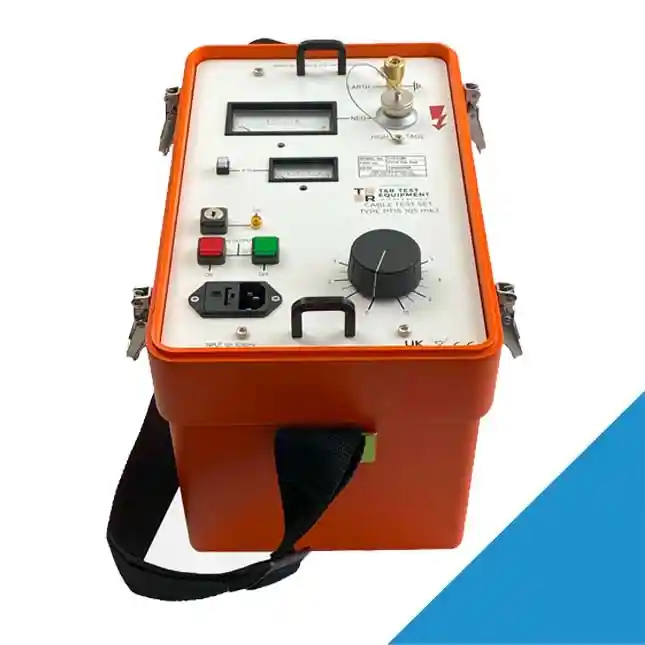

The PT15 10S Mk2 Test Set provides a variable output of zero to 15kV DC with a maximum charging capability of 10mA It includes a zero volt interlock that prevents the output from being switched on unless the output control is at zero An automatic load discharge system is integrated discharging the cable under test when the output is switched off or a breakdown occurs
The internal dumping system has a maximum discharge capacity of 1 25kJ which corresponds to 7 5μF at 15kV The PT15 10S Mk2 DC Test Set comes with a standard DP20 discharge probe This allows for discharging cables with a capacitance of up to 12μΩ at 15kV
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Produk Tridinamika tersertifikasi jaminan SNI
Ini hanya demo
Free
Jasa Pengiriman kilat oleh tim Tridinamika
Ini hanya demo saja
2-3 Days
Free
0 to 15kVdc output voltage
10mA output capability
Both voltage and current metered on HV output
Automatic earth system for dumping capacitive loads
HV output plug socket
Key operated supply switch to prevent unauthorised operation
Zero volt interlock
Visual indication of test piece failure
Compact unit with lightweight insulated case
| Brand |
T & R |
|---|
