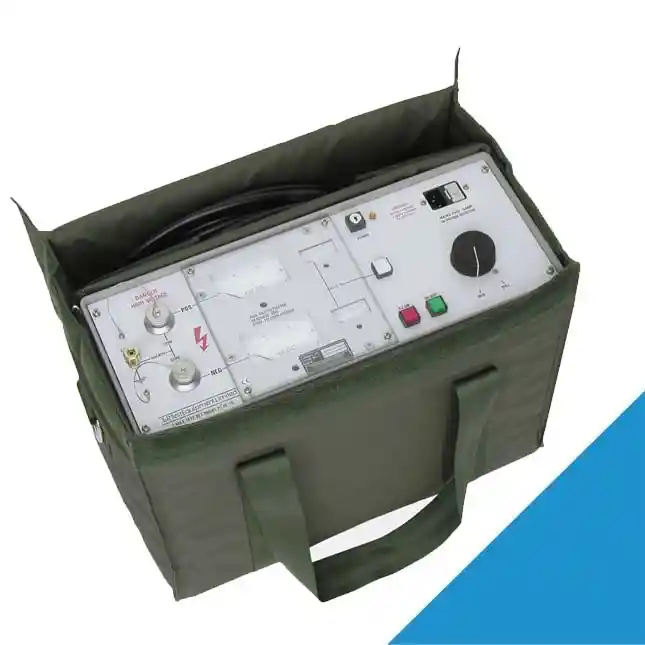

The PT30 10 Mk3 Test Set conducts tests on installed cable and jointing systems It offers a variable output voltage of up to ±30kVdc and a maximum charging capability of 10mA It features a zero volt interlock that prevents switching on the output unless the output control is at zero Additionally an automatic load discharge system safely discharges the cable under test when switching off the output or in case of a breakdown
The internal dumping system has a maximum discharge capacity of 2 5kJ on each output corresponding to 4µF at 30kV In the event of a test object failure the overload circuit automatically shuts off the output voltage and grounds the output using the internal discharge circuit
The PT30 10 Mk3 comes standard with a manual DP40 discharge probe enabling safe discharge of higher load capacitances It also introduces automatic 115230V mains voltage selection for seamless transition between site voltages
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Produk Tridinamika tersertifikasi jaminan SNI
Ini hanya demo
Free
Jasa Pengiriman kilat oleh tim Tridinamika
Ini hanya demo saja
2-3 Days
Free
High performance DC test set for cable jointing systems ±30kVdc output auto load discharge versatile voltage selection Reliable and efficient testing solution
±30kVdc output voltage
10mA output capability
Both voltage and current metered on HV outputs
Automatic earth system for dumping capacitive loads
HV output plug socket system
Key operated supply switch to prevent unauthorised operation
Zero volt interlock
Visual indication of test piece failure
Automatic mains voltage selection
| Brand |
T & R |
|---|
