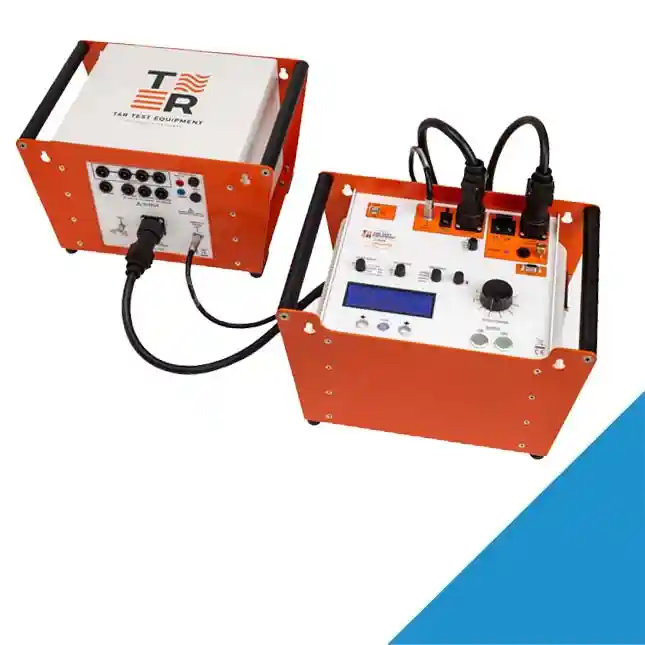

The Z OVR Cable Impedance Test System is a reliable and powerful solution for measuring cable impedance accurately whether it’s overhead lines or underground cables This test set comprises a control unit and an output transformer that provides isolation of the output current and feedback voltage
With the Z OVR you can inject current into the line under test and measure the resultant magnitude and phase angle of the voltage across the line This measurement method allows for the calculation of the impedance Z X of the line The system displays the current voltage phase angle impedance of the line as well as the harmonic content of the voltage and current
The Z OVR has data logging capabilities to save date time current voltage phase angle and frequency to a CSV file on a standard USB memory key Additionally the system provides three voltage taps 75V 150V 300V for measuring a wide range of lines and cables and all metering is true RMS
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Produk Tridinamika tersertifikasi jaminan SNI
Ini hanya demo
Free
Jasa Pengiriman kilat oleh tim Tridinamika
Ini hanya demo saja
2-3 Days
Free
Measure impedance of overhead lines and underground cables
Direct readout of cable Z X
Phase angle display
Voltage up to 300V
Current up to 80A
Data storage to CSV file on USB memory key
Digital true RMS memory ammeter voltmeter
Solid state switching
Rugged compact design
| Brand |
T & R |
|---|
