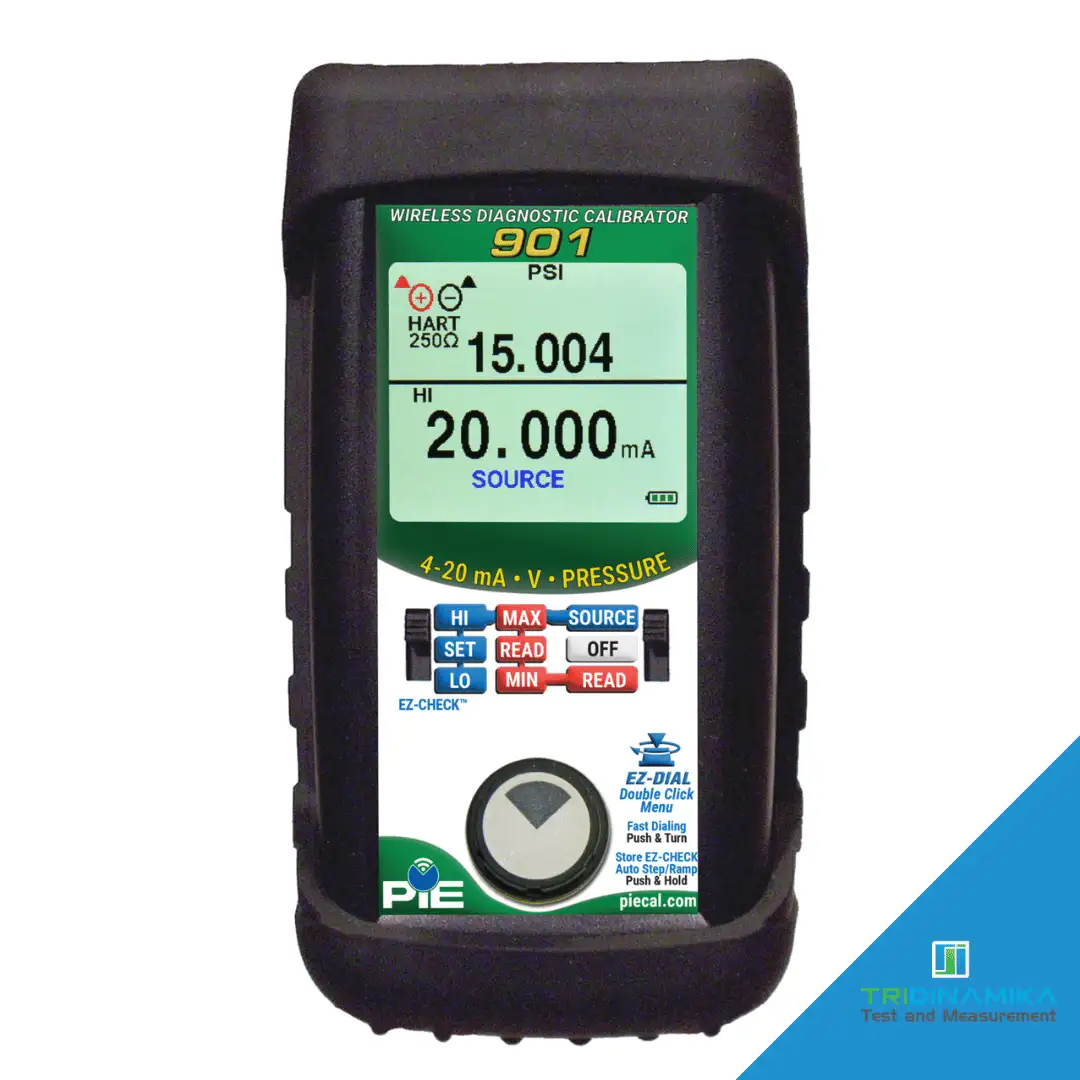

Calibrate Milliamp Instruments
Source 0 000 to 24 000 mA 25 00 to 125 00% of 4 20 mA
Read 0 000 to 24 000 mA 25 00 to 125 00% of 4 20 mA
Simulate 2 Wire Transmitter Power Read Transmitters
Accurate to ± 0 01% of Reading + 0 002 mA
Calibrate Voltage Instruments
Source 0 000 to 24 000 VDC
Read 60 000 to 60 000 VDC
Accurate to ± 0 02% of Reading + 0 01% Full Scale
Calibrate pressure instruments with optional pressure modules
Dual display of milliamp and pressure for calibration of IP or PI transducers and pressure gauges
Choose from a wide selection of pressure modules along with hand pumps and tubing kits
Blue tooth functionality for use with future PIE wireless pressure modules
Large Color Display with color coded menus for simplified setup
Locate Loop Current Leakages
Automatic indication of Loop Current and Leakage Current Measure ground current leakage from faulty wiring flooded conduit and corrosion bridges Leakage typically appears as a Zero Shift and helps you decide if the transmitter needs calibration or if there is a problem in the loop wiring
Faster Calibrations
Three output EZ CHECK switch
2 speed EZ DIAL
Stepping Ramping
Includes AA Alkaline batteries rubber protective boot and NIST Calibration card
Optional Accessories
USBC charger 020 0104
NiMh Rechargeable AA Batteries 4 pack 020 0105
mV Test leads 020 0207
Hands Free carrying case 020 0211
Magnetic hanging strap 020 0236
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Produk Tridinamika tersertifikasi jaminan SNI
Ini hanya demo
Free
Jasa Pengiriman kilat oleh tim Tridinamika
Ini hanya demo saja
2-3 Days
Free
If you find a loop where the transmitter is calibrated correctly but all the readings elsewhere in the loop have a fixed offset this is due to a Zero Shift This zero shift is typically caused by some current in the loop bypassing the transmitter This might be caused by ground faults moisture or corrosion
Turn on Ground Leak Detection and use the PIE 901 to power up the loop Any current that isn’t controlled by the transmitter or other current control element will be indicated as leakage on the calibrator’s display
| Brand |
PIE |
|---|
