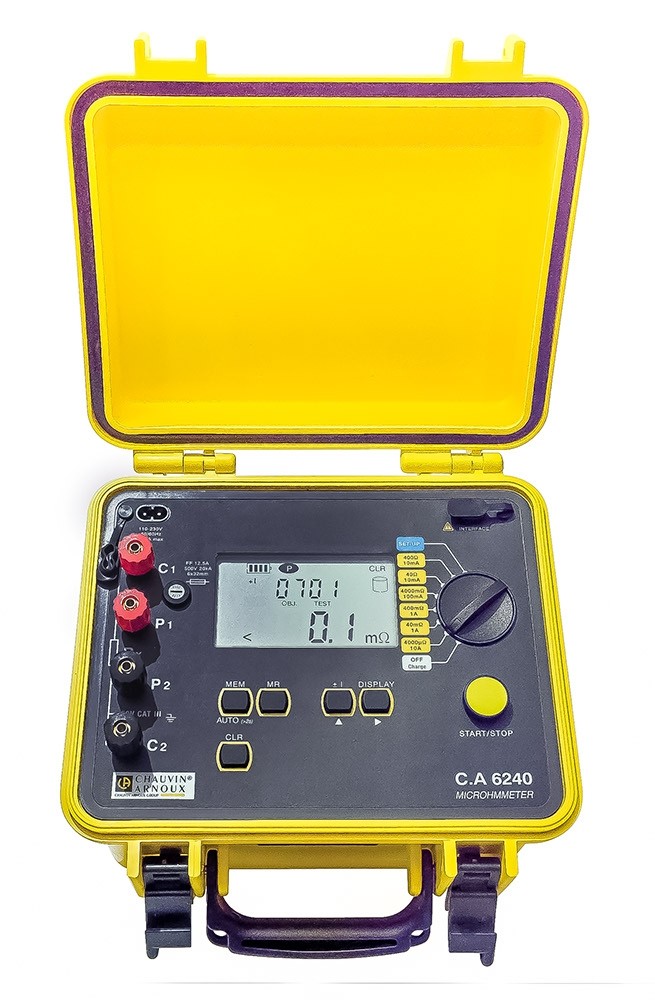

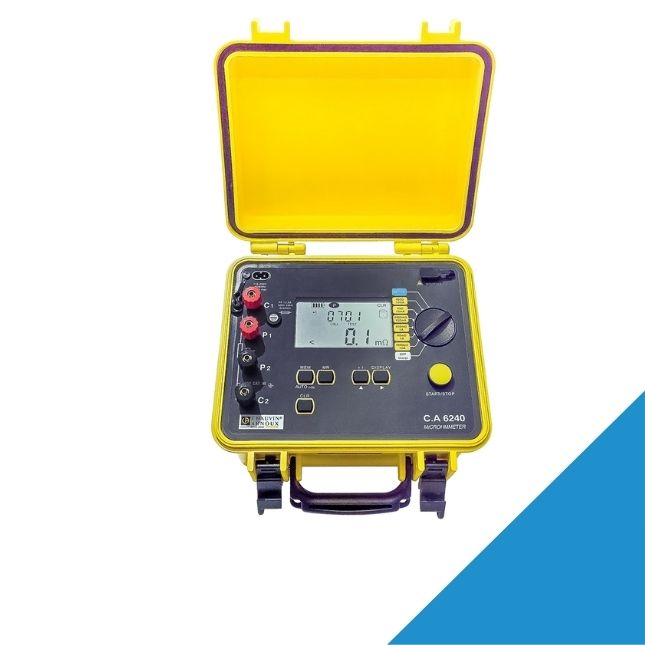

Chauvin Arnoux CA 6240 10A microohmmeter Wide measurement range from 5 μΩ to 400 Ω

C.A 6240 technical specifications:
– 4-wire measurement method
– measurement ranges from 5 µΩ to 400 Ω
– Test current up to 10 A
– Max. resolution 1 µΩ
– Automatic power off
– Power supply: NiMH rechargeable battery
– Storage: 100 measurements
– Communication via USB optical link
– Data export software
– IP53 protection
– Electrical safety: IEC 61010-1 CAT III 50 V
– Dimensions: 273 x 247 x 280 mm
– Weight: 5 kg

To make them easier to use and to permit new applications, new retractable 10 A KELVIN test probes are now available as accessories.

“Pistol” test probes
– Handle dimensions 108 x 40 mm, test probe 154 x 30 mm, thickness 28 mm
– Test probe diameter 2 mm
– Test-probe spacing 3.5 mm
– Cable length 3.15 metres
– Spade lugs for Ø 4 to 6 mm
– Safety connectors Ø 4 mm
– Weight approx. 2 x 420 g
Kelvin test probe with rotation
– Dimensions (L x W x H) 207 x 34 x 30 mm
– Test-probe diameter 3 mm
– Test-probe spacing 8 mm
– Test-probe extension/retraction 10 mm
– Cable length 3.15 metres
– Spade lugs for Ø 4 to 6 mm
– Safety connectors Ø 4 mm
– Weight approx. 2 x 400 g
– Resistance 2 x 50 mΩ max.
