Oxygen O2 0 – 20 9 Vol %
Carbon Monoxide CO 0 – 2000 ppm
Carbon Dioxide CO2 0 – 30 0 Vol %
Efficiency 0 – 99 9 %
Heat Losses 0 – 99 9 %
Excess Air 1 – 9 99
Flue Gas Temperature 20 – 1200°C
Ambient Temperature 20 – 120°C
Pressure + 350mbar
Soot Filter paper method
Gas sampling probe with heated probe handle 270mm hose 3 5m
Power supply 240VAC 120VAC Rechargeable battery
Dimensions 425 x 185 x 290 mm
Weight 5 8 kg
Operating conditions 0°C 40°C 10 90% RH non condensing
Other ranges are available upon request
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Produk Tridinamika tersertifikasi jaminan SNI
Ini hanya demo
Free
Jasa Pengiriman kilat oleh tim Tridinamika
Ini hanya demo saja
2-3 Days
Free

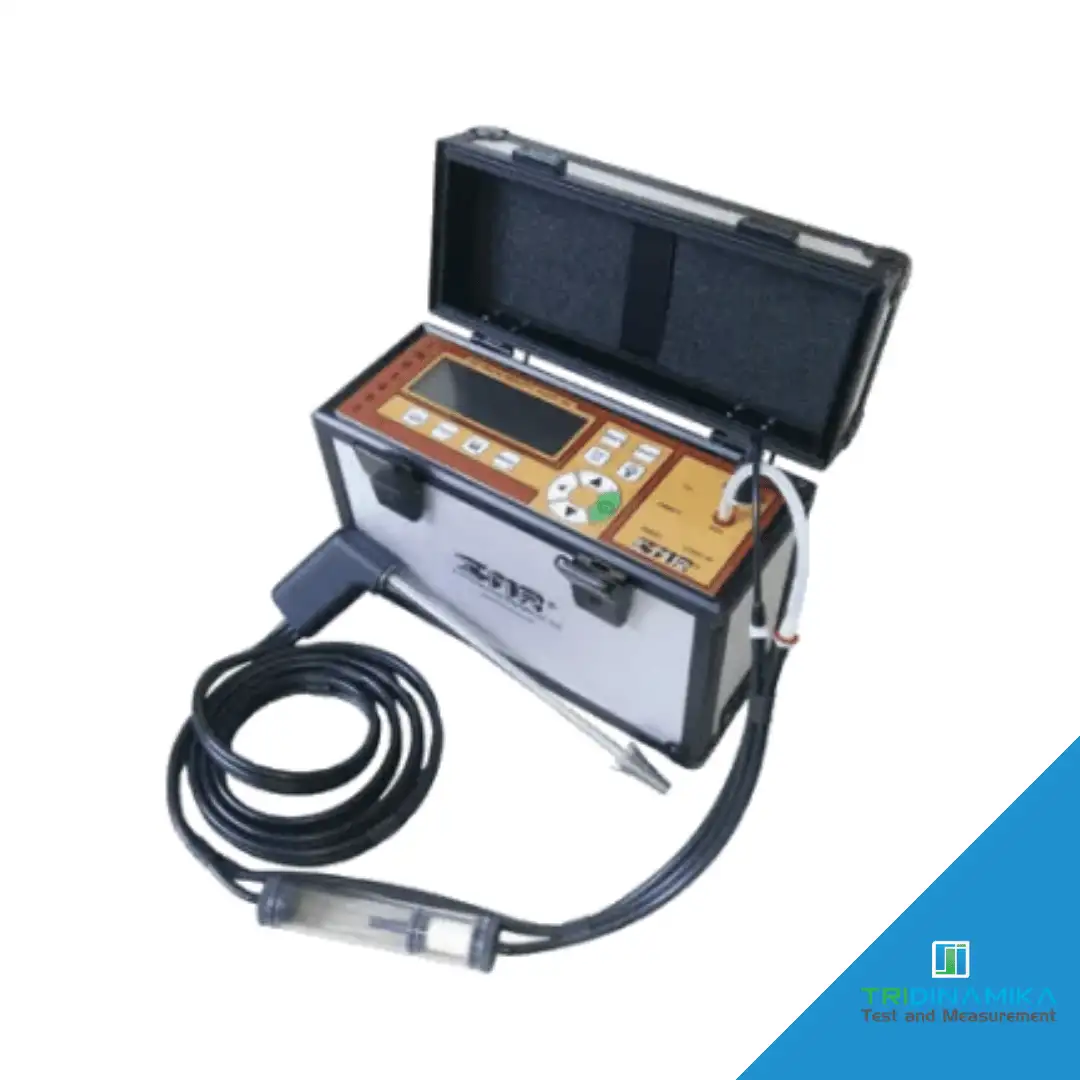

The IMR 1400C is a portable Flue Gas Analyzer for commercial and industrial applications
The rugged combustion analyzer can be equipped with up to 4 sensors
Its basic unit has an O2 Oxygen and a CO Carbon Monoxide sensor The other two sensors are customer selectable as well as the measuring ranges
The IMR 1400C measures and calculates all the needed parameters to perform a thorough combustion test
The IMR 1400C is a portable continuous measuring flue gas analysis instrument housed in an aluminum case
It measures Flue Gas Temperature Oxygen O2 and Carbon monoxide CO Combustible calculations like Losses Excess Air Combustion Efficiency and Carbon dioxide CO2 are standard
It can optionally measure Amient Temperature Nitric Oxide NO Nitrogen Dioxide NO2 Sulfur Dioxide SO2 andor Hydrocarbons HC
Draft and Soot measurements are optional available as well
Further features include
Simultaneous display of eight measured parameters on the illuminated LCD
Integrated thermal printer IMR 1400cp
Engineering units like ppm mg mgkWh mg ref O2 units are selectable
Case with additional space for spare parts
| Brand |
IMR |
|---|
