O2 Oxygen 0 – 20 9 Vol %
CO Carbon Monoxide 0 – 10 000 Vol %
CO Carbon Monoxide 0 – 0 200 Vol % IMR 1440COFL
NOx Nitric Oxides 0 – 5 000 ppm optional
CO2 Carbon Dioxide Calculation 0 – CO2 max
TG Flue Temperature 4 °F – 2192°F 20 – 1200 °C
P Exhaust Gas Pressure 0 – 350 hPa
SZ Soot Filter Paper 0 1 0 – 9 9
Fuels Diesel Natural Gas Propane Biogas Gasoline
Gas sampling probe Flexible sheath length 250mm hose 3 5m 11 5 ft
Power Supply 120VAC60Hz 230VAC50Hz Rechargeable Battery
Dimensions 245 x 185 x 290mm
Weight 5 8Kg
Operating Temperature 0 40°C; 10 90% RH non condensing
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Produk Tridinamika tersertifikasi jaminan SNI
Ini hanya demo
Free
Jasa Pengiriman kilat oleh tim Tridinamika
Ini hanya demo saja
2-3 Days
Free

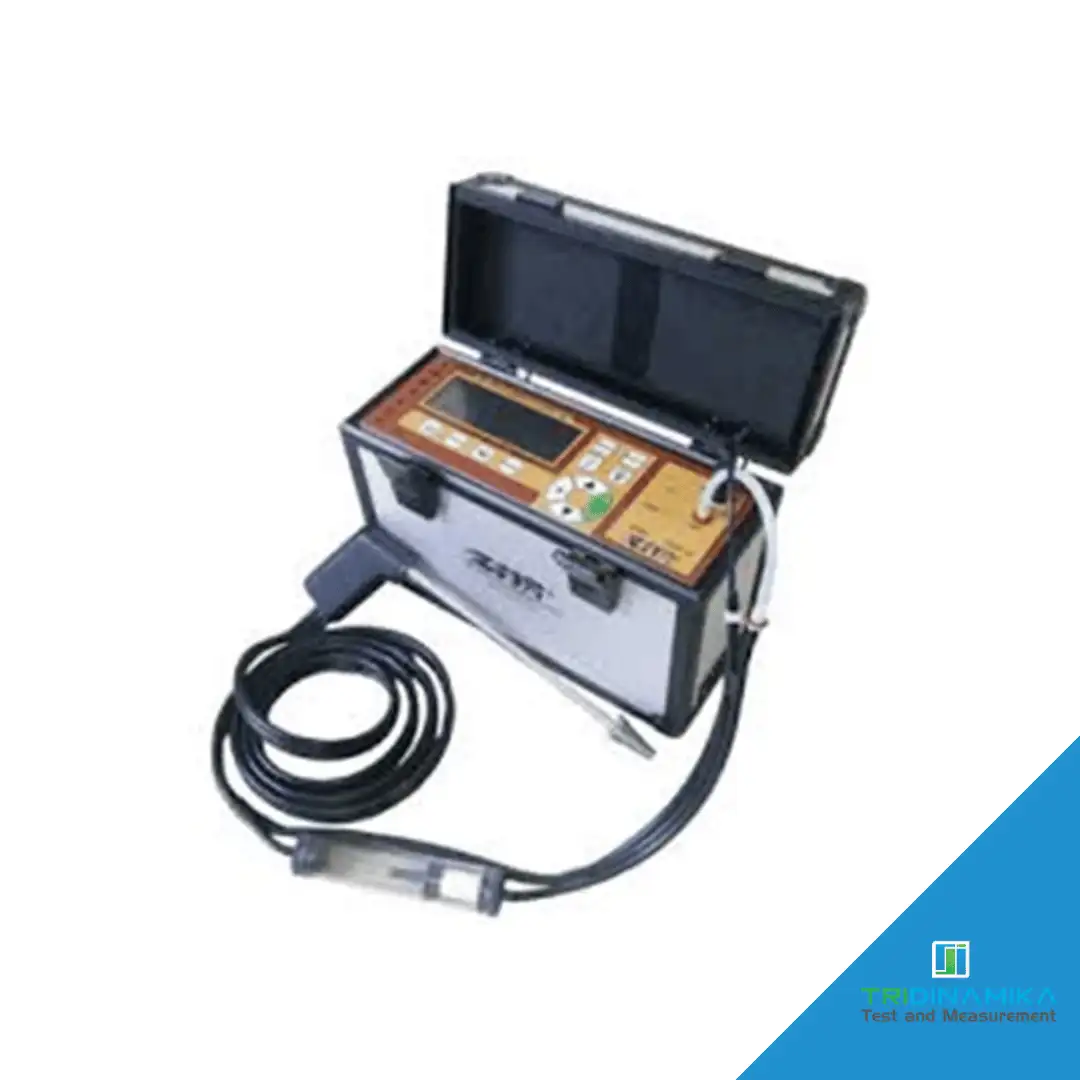

The exhaust gas analyzer IMR 1440FL is designed to measure exhaust gases on Forklift Trucks Generators Cars and heavy Machinery that are powered by Diesel or Gas Engines
According to regulations it can measure soot on diesel engines and Carbon Monoxide CO on gas powered forklift trucks
Some worldwide regulations require Nitric Oxides NOx therefore this analyzer can be equipped with a NOx sensor as well
He exhaust gas analyzer IMR 1440FLCOFL is designed to measure exhaust gases of Forklift Trucks Generators and heavy Machinery that are powered by a variety of fuels According to US regulations the IMR 1440FLCOFL can measure soot and CO for Forklift Trucks
If state regulations require NOx the IMR 1440FLCOFL can be equipped with a NOx sensor The IMR 1440COFL is equipped with two CO sensors One CO sensor operates in the low range and another CO sensor operates in the high range
This new model can also measure the exhaust gas pressure before the soot filter The measurement of the flue gas temperature oxygen carbon dioxide and excess air are helpful for diagnostic reasons and the adjustment of the engine to minimize CO emissions
A flexible probe which fits in most exhaust pipes is inserted into the exhaust pipe and a clamp holds it in place Measuring exhaust gases is not only important to help control pollutants like CO but it also helps optimizing fuel efficiency and saving operating costs
Further features include
Rugged case with additional compartments
Hold all accessories in a single case!
Menu navigation Soot CO or Pressure measurement
Condensation trap with integrated filter
4 line backlit LCD Display for simultaneous display of 8 values
Rechargeable battery with status indicator; up to 6 hours
Volume controlled soot measurement with soot paper soot scale
Exhaust gas pressure
High speed thermal printer with an easy paper loading system
Low CO switch valve with purge pump to protect the low CO Sensor IMR1440COFL
Diagnostic program
Gas sampling probe with a flexible sheath
Manual
Power cord
