Dual flow monitoring with sum average difference and maximum calculations
Process outputs including current open collector relay
Communication options RS 485 Modbus RTU and HART* compatible output
Current inputs for temperature pressure and density compensation
Up to 100 000 measurement data logger and software for sampling and data transfer
Optional heat quantity thermal energy measurement functionality
Pipe diameter range 10 mm to 6 500 mm
Temperature range for sensors 30 °C to +250 °C 22 °F to +482 °F higher temperatures available on request
Lockable and sturdy IP 66 polycarbonate flowmeter enclosure
Selectable three line LCD display and full keypad
Measurement of two flows simultaneously
Up to ten input or output slots available
Manufacturing and Process
Cooling systems on injection moulding machines
Measurement of paint flows
Fire pump control
Water and Wastewater
Dual pipe metering for cost savings
Replacement of large bore electromagnetic flowmeters
Effluent metering
Building Services
Installation on hot water lines
Dual channel energy flow measurement
Installation on chilled water systems
Semiconductor
Demineralised water measurements
Control of hydrofluoric acid flows
Measurement in clean room environments
Pharmaceutical
Water for injection measurement
Measurement of sterile fluids
Clean in Process CIP system monitoring
General Industry
Automated process control
Measurement of furnace cooling flows
Fuel and oil consumption measurements
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Produk Tridinamika tersertifikasi jaminan SNI
Ini hanya demo
Free
Jasa Pengiriman kilat oleh tim Tridinamika
Ini hanya demo saja
2-3 Days
Free

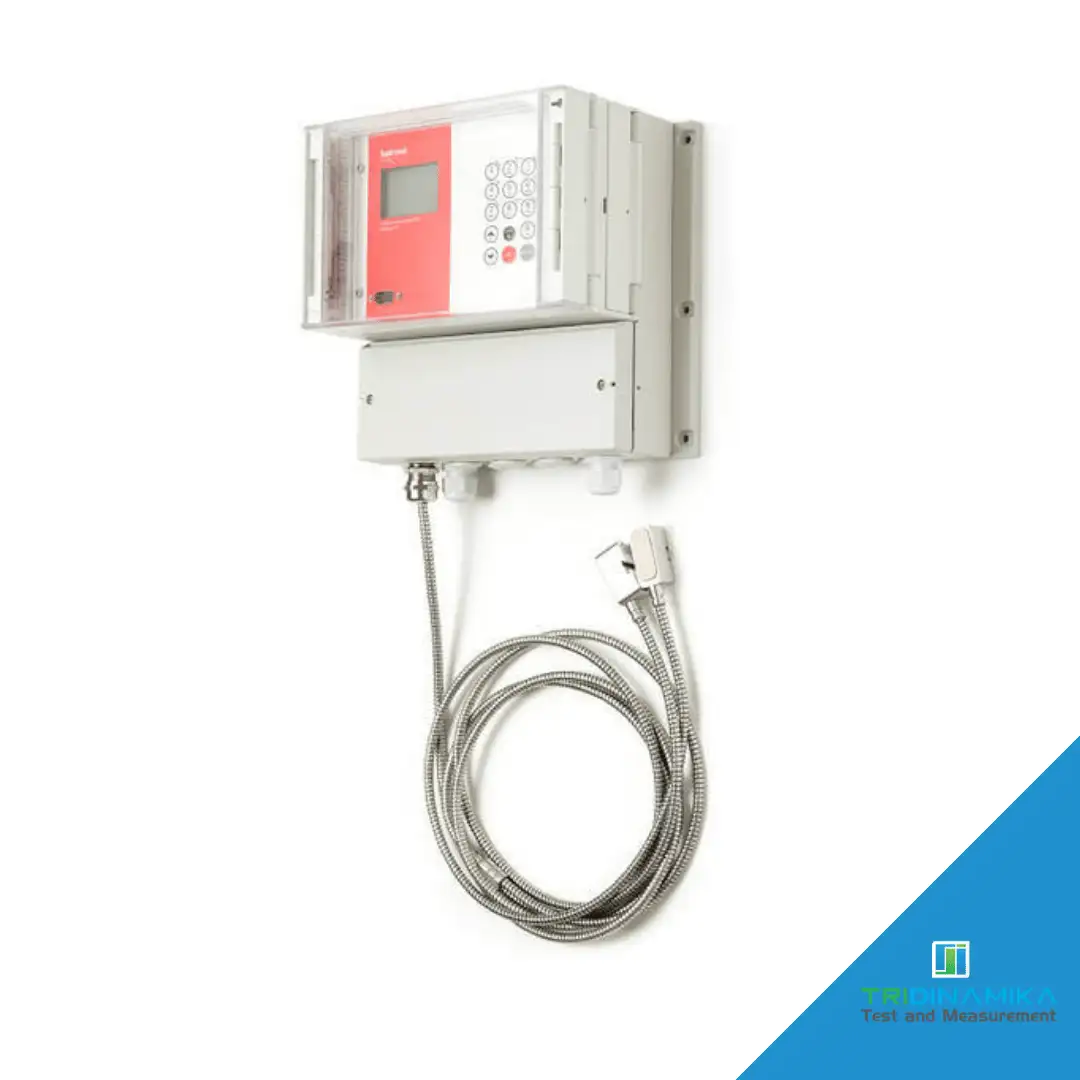

The KATflow 150 is the premier product for flexibility and performance providing the user with a comprehensive specification and a list of configuration options The practical modular design and the wide variety of different transducer types available ensure this instrument is suitable for everything from simple water flow measurements to energy flow monitoring and automated process control
Pipe Diameter 10 – 6 500 mmFixed InstallationHeat Quantity MeasurementMains OperatedInternal Data LoggerProcess Outputs
The KATflow 150 is an advanced ultrasonic flowmeter for permanent installation The dual channel design allows the user to either save cost and time by performing two independent measurements simultaneously or to install two pairs of transducers on a single pipe for locations where there are non ideal flow conditions Where this is used the sum difference average and maximum calculations are available in order to provide further processing of the data
| Brand |
Katronic |
|---|
