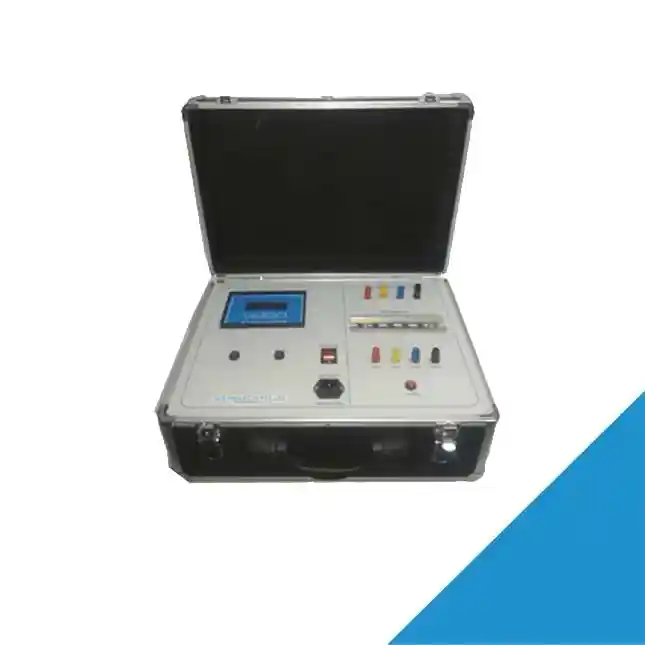

The RCCB leakage trip verification briefcase is a portable test set up for demonstrating the operational characteristics of a residual current device (RCCB / RCD / RCBO) as per IEC 61008 and IEC 61009. The briefcase integrates the speed of operation test, sensitivity test, trip / no trip test and push button test in a single unit thus making it an all in one solution at a lesser cost and size.
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Ini demo, bisa diisi apa saja
Produk Tridinamika tersertifikasi jaminan SNI
Ini hanya demo
Free
Jasa Pengiriman kilat oleh tim Tridinamika
Ini hanya demo saja
2-3 Days
Free
Specification :
* Portable and Light Weight making the unit ideal for sales demonstrations.
* Small in weight, size and portable than most of the conventional RCCB test kits.
* Single model for entire range of RCCBs ensures Economical solution. Single model for both 2 and 4 pole RCCBs: Economical solution.
* Speed of operation, sensitivity, trip-no trip test and push button test carried out sequentially in a single unit.
* Enclosed in flight case for easy carrying (with a handle) and safety.
* Programmable AC Solid state current source ensures precision testing and display.
* Single micro controller unit for user interface with keypad: Current and trip time is programmed digitally.
* Digital indication of current and time.
* Conformance indication: Fail / Pass.
* In-built calibration feature.
* Input supply: 230 V, 2A, 50 Hz (single phase).
* Test Current: 0-500 mA AC.
* Test Current Resolution: 0.1 mA.
* RCCB Ratings: 30 mA, 50 mA, 100 mA, 300 mA.
* Test Time Resolution: 1 milliseconds.
| Brand |
SCR Elektroniks |
|---|
